Pumped-storage hydroelectricity (PSH), or pumped hydroelectric energy storage (PHES), is a type of hydroelectric energy storage used by electric power systems for load balancing. The method stores energy in the form of gravitational potential energy of water, pumped from a lower elevation reservoir to a higher elevation. Low-cost surplus off-peak electric power is typically used to run the pumps. During periods of high electrical demand, the stored water is released through turbines to produce electric power. Although the losses of the pumping process make the plant a net consumer of energy overall, the system increases revenue by selling more electricity during periods of peak demand, when electricity prices are highest. If the upper lake collects significant rainfall or is fed by a river then the plant may be a net energy producer in the manner of a traditional hydroelectric plant. Pumped-storage hydroelectricity allows energy from intermittent sources (such as solar, wind) and other renewables, or excess electricity from continuous base-load sources (such as coal or nuclear) to be saved for periods of higher demand. The reservoirs used with pumped storage are quite small when compared to conventional hydroelectric dams of similar power capacity, and generating periods are often less than half a day.
Problem definition Company PMP wants to build a new pumped storage hydroelectricity power plant across a river. This facility will be generating power during the peak hours of the day because of its half day upstream reservoir capacity. And for the off-peak hours it will be pumping up the water that is collected in its downstream reservoir using the power from the grid. So, basically, during the day it will be generating power and selling it with peak prices, and during the evening it will be consuming energy and will need to buy it for off peak prices. The Company PMP is trying to decide about downstream reservoir capacity. To decide it they need to simulate the system with water inflow input and market prices to decide what proportion of upstream and downstream reservoirs would be optimal to decide on size of downstream reservoir.
Upstream Inflow = (25 m3/s) + Precipitation
Precipitation = Random normal between 0 and 50 m3/s with mean 25 and std. 5
Stream Flow(m3) (Fixed) = 50m3/s
Generation Flow (m3/s) = (Every Peak Hours from 08:00 to 20:00 in a year ) If Upstream Reservoir Volume is more than half capacity => Installed Capacity x Generator Power Factor (With less than half of full reservoir capacity, generation is inefficient. Therefore no generation occurs when capacity level drops below 0.5 capacity)
Pump Flow = (Every Off Peak Hours from 20:00 to 08:00 in a year )(25 m3/s)
Upstream Reservoir Volume (m3/h) = Stock Variable, accumulated by ((Pump flow + Upstream Inflow - Generation Flow) x 60 x 60 ) - (Evaporation x Upstream Reservoir Volume))), must be between 0 and Upstream Reservoir Max Volume Capacity
Downstream Reservoir Volume (m3/h) = Stock Variable, accumulated by (((Generation Flow - Pump flow - Stream flow) x 60 x 60 ) - (Evaporation x Downstream Reservoir Volume))), must be between 0 and Downstream Reservoir Max Volume Capacity
Evaporation = 1 percentage lost every hour
Generator Power Factor = How much water volume needed for per MWh generation, 10m3/s per MW
Pumping Consumption (Efficiency Loss for pumping water = Generator power factor x 0.3) => Generator Power Factor x 1.3
Initial active reservoir levels (Upstream Reservoir = 0.7; Downstream Reservoir = 0.3)
Spot Market Prices (Eur/MWh) = (12 Off-peak hours from 20:00 to 08:00 average 100 Eur/MWh, 12 peak hours from 08:00 to 20:00 average 200 Eur/MWh)
Revenue Generated = Generation Flow (m3/s) x 60 x 60 / Generator power factor x Peak Spot Market Prices
Cost Generated = Pump flow x 60 x 60 / Pumping Consumption x Off Peak Spot Market Prices
Upstream Reservoir Max Volume Capacity (m3)= 12 hour upstream expected inflow (25 m3/s + Precipitation) accumulation equalivalent
Downstream reservoir Max Volume Capacity (m3) (Variable) = Upstream Reservoir Max Volume Capacity x "UpS Reservoir/DwS Reservoir Proportion"
"UpS Reservoir/DwS Reservoir Proportion" (Variable) = (Two different runs with value = 1 (Equal Capacities) and value = 5 (Upstream reservoir capacity is 5 times bigger than Downstream reservoir capacity)
Installed capacity = 50 MW
Profit Balance = Revenue Generated - Cost Generated
How to use the program

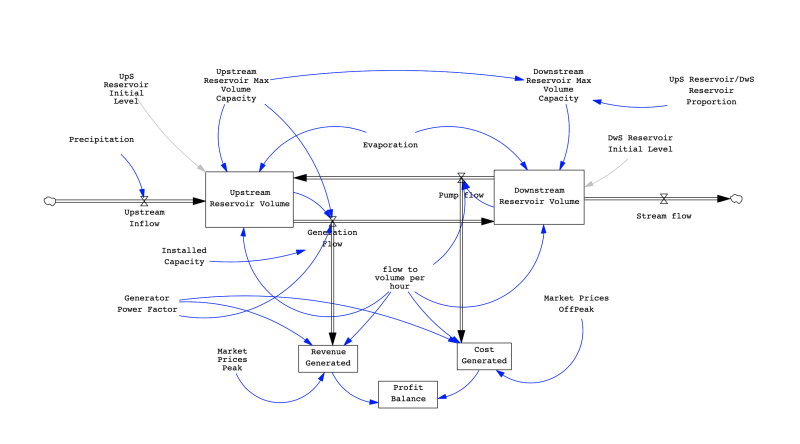

With Vensim system simulator, a stock and flow diagram was created as illustrated. The simulation model is simply based on Reservoir Volumes as Stock Variables, which have feed mechanisms with flows and attributes, and also Reservoir Volumes are feeding each other as interconnected with flows to each other.
Reveues and Costs are also Stock variables which are fed by the same flow attributes of reservoirs by getting converted to Energy and Value with the interference of Spot Market Prices.

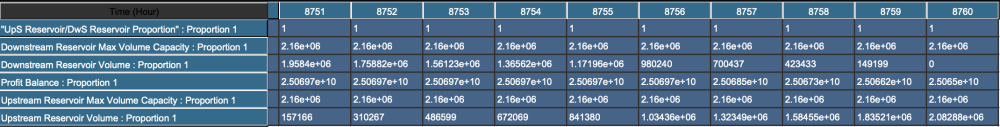

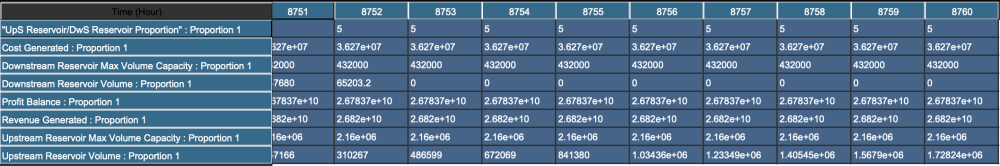

To improve the profit, two different runs were tested with changing “UpS Reservoir/DwS Reservoir Proportion”. First reservoir capacity proportion used is 1, which basically means equivalent capacities. And the second capacity proportion used is 5, which basically means Upstream Maximum reservoir capacity is 5 times larger than Downstream reservoir capacity.

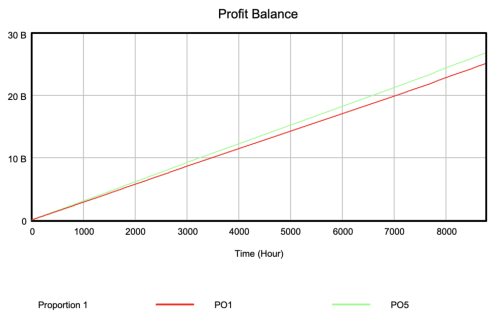

According to the two runs tested, proportion 1 is less profitable than proportion 5.
Which basically explains The Company PMP should not invest in constructing a second (Downstream) reservoir as large as the first (Upstream reservoir). Pumped up water volume can trigger discharge of water in the first reservoir if both reservoirs have equivalent capacities, which can cause loss of generation in the long run and therefore loss of revenues. For further improvement of profit, pumping flow rate can be adjusted according to the proportion of reservoir capacities.
The simulation model can be viewed with File:PHES.mdl
(01) Cost Generated= INTEG ( Pump flow * flow to volume per hour / Generator Power Factor * 1.3*Market Prices OffPeak , 0) Units: Hour (02) Downstream Reservoir Max Volume Capacity= Upstream Reservoir Max Volume Capacity/"UpS Reservoir/DwS Reservoir Proportion" (03) Downstream Reservoir Volume= INTEG ( IF THEN ELSE (((Generation Flow - Pump flow - Stream flow) * flow to volume per hour) + (Downstream Reservoir Volume * (1 - Evaporation)) > Downstream Reservoir Max Volume Capacity , Downstream Reservoir Max Volume Capacity - Downstream Reservoir Volume, IF THEN ELSE( ((Generation Flow - Pump flow - Stream flow) * flow to volume per hour) + (Downstream Reservoir Volume * (1 - Evaporation)) <= 0, -Downstream Reservoir Volume, ((Generation Flow - Pump flow - Stream flow) * flow to volume per hour ) - (Evaporation * Downstream Reservoir Volume))), Downstream Reservoir Max Volume Capacity*DwS Reservoir Initial Level) (04) DwS Reservoir Initial Level= 0.3 (05) Evaporation= 0.01 (06) FINAL TIME = 8760 Units: Hour The final time for the simulation.
(07) flow to volume per hour= INITIAL( 60*60) Units: Hour (08) Generation Flow= PULSE TRAIN(8,12,24,8760) * IF THEN ELSE( Upstream Reservoir Volume <= Upstream Reservoir Max Volume Capacity *0.5 ,0 , Installed Capacity * Generator Power Factor ) (09) Generator Power Factor= 10 (10) INITIAL TIME = 0 Units: Hour The initial time for the simulation.
(11) Installed Capacity= 50 (12) Market Prices OffPeak= 100 Units: Hour (13) Market Prices Peak= 200 Units: Hour (14) Precipitation= RANDOM NORMAL(0, 50 , 25 , 5 , 10 ) Units: Hour (15) Profit Balance= Revenue Generated-Cost Generated Units: Hour (16) Pump flow= (PULSE TRAIN(0,8,24,8760) + PULSE TRAIN(20,4,24,8760)) * IF THEN ELSE(Downstream Reservoir Volume < 25*flow to volume per hour, 0, 25) (17) Revenue Generated= INTEG ( Generation Flow*flow to volume per hour/Generator Power Factor*Market Prices Peak , 0) Units: Hour (18) SAVEPER = TIME STEP The frequency with which output is stored.
(19) Stream flow= 50 (20) TIME STEP = 1 Units: Hour [0,?] The time step for the simulation.
(21) UpS Reservoir Initial Level= 0.7 (22) "UpS Reservoir/DwS Reservoir Proportion"= 1 (23) Upstream Inflow= 25 + Precipitation (24) Upstream Reservoir Max Volume Capacity= 50*60*60*12 (25) Upstream Reservoir Volume= INTEG ( IF THEN ELSE (((Pump flow + Upstream Inflow - Generation Flow) * flow to volume per hour ) + (Upstream Reservoir Volume * (1 - Evaporation)) > Upstream Reservoir Max Volume Capacity , Upstream Reservoir Max Volume Capacity - Upstream Reservoir Volume, IF THEN ELSE( ((Pump flow + Upstream Inflow - Generation Flow) * flow to volume per hour ) + (Upstream Reservoir Volume * (1 - Evaporation)) <= 0, -Upstream Reservoir Volume, ((Pump flow + Upstream Inflow - Generation Flow) * flow to volume per hour ) - (Evaporation * Upstream Reservoir Volume))), Upstream Reservoir Max Volume Capacity*UpS Reservoir Initial Level)
