Problem definition

Crop rotation is based on growing a series of different types of crops in the same area in sequential seasons. The planned rotation may vary from a growing season to a few years or even longer periods. It is one of the most effective agricultural control strategies that is used in preventing the loss of soil fertility. It also helps in reducing soil erosion and increases crop yield. Planning an effective crop rotation requires weighing fixed and fluctuating production circumstances: market, farm size, labor supply, climate, soil type, growing practices, etc.

In this simulation I will try to find parameters which have impact on the whole process of crop rotation with goal to find model providing desired outputs (these were slightly changed from concept) - crop yields, greenhouse gas emissions (N2O, CO2, NH4), soil fertility (nitrogen levels).

I will focus on four crop rotation strategies with three different crops - corn, soybean, wheat:

CCC (continuous corn) - only corn will be farmed for the whole observed time period (40 years)

CS (corn-soybean) - rotation of corn and soybean will be used in year cycles for the whole observed time period (40 years), first year corn, second year soybean, repeat..

SSS (continuous soybean) - only soybean will be farmed for the whole observed time period (40 years)

CSW (corn-soybean-wheat) - rotation of corn, soybean and wheat will be used in year cycles for the whole observed time period (40 years), first year corn, second year soybean, third year wheat, repeat..

Goal of this simulation is to observe dynamic changes with yields, greenhouse gas emissions, tillage strategy and soil nitrogen levels, while changing different crop rotation strategies.

Method

Vensim modelling approach was selected due to dynamic behavior of the simulated system.

Model

Following vensim model was developed based on the study.

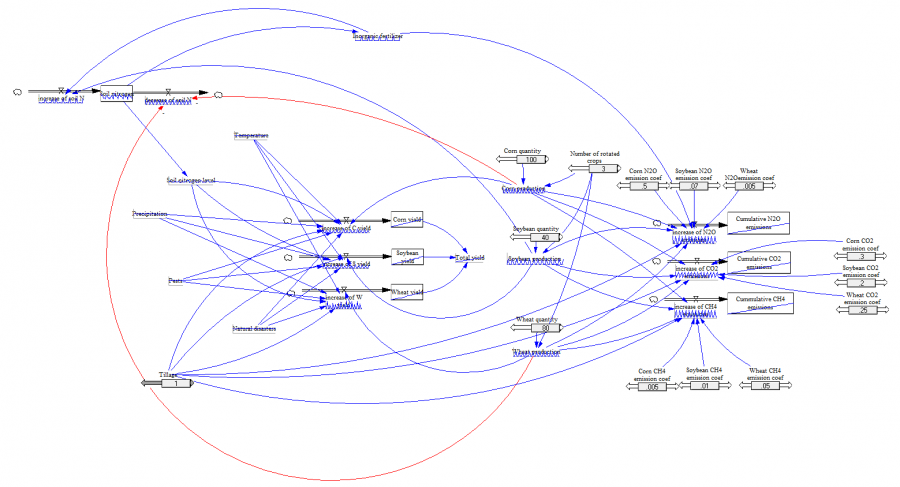

Crop rotation Stock Flow Diagram

Variables

Number of rotated crops

Input constant variable which can be changed based on crop strategy. Range <1,3>.

=1 (in case of CCC and SSS strategies)

=2 (in case of CS strategy)

=3 (in case of CSW strategy)

Corn production

PULSE TRAIN function ensures specific crop to be delivered by time pattern. In crop rotation strategies, if corn is present, it is always first crop, therefore it starts at time 0 (first year), duration is 1 year, repetition is based on number of crops (eg. 2 - it repeats in third year) and final time is set to fixed 40 years according to simulation setup.

=Corn quantity*PULSE TRAIN(0, 1 , Number of rotated crops ,40)

Soybean production

Similar case as in Corn production variable only with difference of initial year, if sobyean is present in crop rotation strategy, it is always second crop, therefore it starts at time 1 (second year). In case of SSS strategy it starts at time 0 (first year)

=Soybean quantity*PULSE TRAIN(IF THEN ELSE(Number of rotated crops=1, 0 , 1 ), 1 , Number of rotated crops , 40 )

Wheat production

Similar case as in Corn production variable only with difference of initial year, if wheat is present in crop rotation strategy, it is always third crop, therefore it starts at time 2 (third year).

=Wheat quantity*PULSE TRAIN(2, 1 , Number of rotated crops , 40 )

Corn quantity

Input constant variable which can be changed based on crop strategy. Range <0,100>.

=100 (in case of CCC, CS and CSW strategies)

=0 (in case of SSS strategy)

Soybean quantity

Input constant variable which can be changed based on crop strategy. Range <0,40>.

=40 (in case of CS, SSS and CSW strategies)

=0 (in case of CCC strategy)

Wheat quantity

Input constant variable which can be changed based on crop strategy. Range <0,80>.

=80 (in case of CSW strategy)

=0 (in case of CCC, CS, SSS strategies)

increase of N2O emissions

Auxiliary variable which changes based on each crop production and its emission coefficient (pattern was extracted from a study),additionaly it changes slightly according to tillage strategy and usage of extra inorganic fertilizer.

Corn production*Corn N2O emission coef*IF THEN ELSE(Tillage=0, 1.5 , 1.4)+ Soybean production*Soybean N2O emission coef*IF THEN ELSE(Tillage=0, 1.5 , 1.4)+ Wheat production*Wheat N2O emission coef*IF THEN ELSE(Tillage=0, 1.5 , 1.4)+ Inorganic fertilizer/5

increase of CO2 emissions

Similar auxiliary variable as increase of N20 emissions extra except zero effect with inorganic fertilizer.

Corn production*Corn CO2 emission coef*IF THEN ELSE(Tillage=0, 3 , 2.9)+Soybean production*Soybean CO2 emission coef*IF THEN ELSE(Tillage=0, 3 , 2.9)+Wheat production

  • Wheat CO2 emission coef*IF THEN ELSE(Tillage=0, 3 , 2.9)

increase of CH4 emissions

Similar auxiliary variable as increase of N20 emissions extra except zero effect with inorganic fertilizer.

Corn production*Corn CH4 emission coef*IF THEN ELSE(Tillage=0, 0.3 , 0.2)+Soybean production*Soybean CH4 emission coef*IF THEN ELSE(Tillage=0, 0.3 , 0.2)+Wheat production

  • Wheat CH4 emission coef*IF THEN ELSE(Tillage=0, 0.3 , 0.2)

Cumulative N2O emissions

=INTEG(increase of N2O emissions)

Cumulative CO2 emissions

=INTEG(increase of CO2 emissions)

Cumulative CH4 emissions

=INTEG(increase of CH4 emissions)

Corn N2O emission coef

Constant variable extracted from study and its data, representing how much N20 emissions is produced while producing corn. Can be adjusted in the future. Further coefficients are similar just crop and emission type changes.

=0.5

Soybean N2O emission coef

=0.07

Wheat N2O emission coef

=0.005

Corn CO2 emission coef

=0.3

Soybean CO2 emission coef

=0.2

Wheat CO2 emission coef

=0.25

Corn CH4 emission coef

=0.005

Soybean CH4 emission coef

=0.01

Wheat CH4 emission coef

=0.05

Inorganic fertilizer

Auxiliary variable observes if soil nitrogens decrease below 20 and applies 30 units of fertilizer (which affects NO2 emissions)

=IF THEN ELSE(Soil nitrogen<20, 30 , 0 )

Soil nitrogen

Level variable observes how much nitrogen in soil increase or decrease

=INTEG(increase of soil N-decrease of soil N)

increase of soil N

Increase of nitrogen level in soil in this model is triggered either by application of inorganic fertilizer or soybean production (soybean and other legumes increase nitrogen level in soil by its decomposition - extracted from study and its data)

=Inorganic fertilizer+Soybean production/12

decrease of soil N

Decrease of nitrogen level in soil in this model is triggered either by corn or wheat production (corn and wheat decreasing nitrogen level in soil by its farming - extracted from study and its data)

=Corn production/8+Wheat production/12

Soil nitrogen level

Auxiliary variable which is dependent on soil nitrogen quantity. According to soil nitrogen levels, it affects yields based on random function with normal distribution. The less soil nitrogen level, the higher negative impact on yields.

IF THEN ELSE(Soil nitrogen<10, RANDOM NORMAL( 0.3 , 0.5 , 0.45 , 0.05 , 100) , 1 )* IF THEN ELSE(((Soil nitrogen>=10) :OR: (Soil nitrogen>20)), RANDOM NORMAL( 0.4 , 0.6 , 0.55 , 0.05 , 100) , 1 )* IF THEN ELSE(((Soil nitrogen>=20) :AND: (Soil nitrogen<30)), RANDOM NORMAL( 0.5 , 0.8 , 0.75 , 0.05 , 100) , 1 )* IF THEN ELSE(((Soil nitrogen>=30) :AND: (Soil nitrogen<40)), RANDOM NORMAL( 0.7 , 0.9 , 0.85 , 0.05 , 100) , 1 )* IF THEN ELSE(Soil nitrogen>=40, RANDOM NORMAL( 1 , 1.4 , 1.2 , 0.05 , 100) , 1 )

Temperature

Auxiliary variable which is based on random function with normal distribution. Study showed that extremes in temperatures can have impacts on harvests and yields. Due to complex behavior, I decided to implement only random function.

=RANDOM NORMAL( 0.9 , 1.1 , 1 , 0.05 , 100)

Precipitation

Auxiliary variable, similar to Temperature variable only with different min and max parameters

=RANDOM NORMAL( 0.8 , 1.2 , 1 , 0.05 , 100)

Pests

Auxiliary variable, similar to Temperature variable only with different min and max parameters

=RANDOM NORMAL( 0.9 , 1 , 0.98 , 0.005 , 100)

Natural disasters

Auxiliary variable, similar to Temperature variable only with different min and max parameters

=RANDOM NORMAL( 0.01 , 1 , 0.99 , 0.05 , 100)

Tillage

Constant variable, which affects yield and emissions. 1 = tilled, 0 = no-till. No-till suppose to be better ecological decision according to study.

=1 (can be changed to 0)

increase of C yield

Corn yield calculated based on previous variables.

=Corn production*Soil nitrogen level*IF THEN ELSE(Tillage=0, 1, 1.05)*Temperature*Precipitation*Pests*Natural disasters

increase of S yield

Soybean yield calculated based on previous variables.

=Soybean production*Soil nitrogen level*IF THEN ELSE(Tillage=0, 1, 1.03)*Temperature*Precipitation*Pests*Natural disasters

increase of W yield

Wheat yield calculated based on previous variables.

=Wheat production*Soil nitrogen level*IF THEN ELSE(Tillage=0, 1, 1.07)*Temperature*Precipitation*Pests*Natural disasters

Corn yield

=INTEG(increase of C yield)

Soybean yield

=INTEG(increase of S yield)

Wheat yield

=INTEG(increase of W yield)

Total yield

Sum of yields

=Corn yield + Soybean yield + Wheat yield

Results

As explained in problem definition sections, four crop rotation strategy were observed: CCC, CS, SSS, CSW. For each strategy I changed necessary variables and did simulation run. I divided results into yields, N2O and CO2 emissions, CH4 emissions and soil nitrogen for comparsion between mentioned crop rotation strategies.

Yields

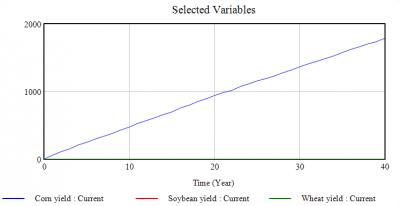

CCC Yield CCC Yield

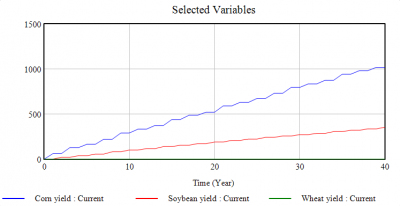

CS Yield CS Yield

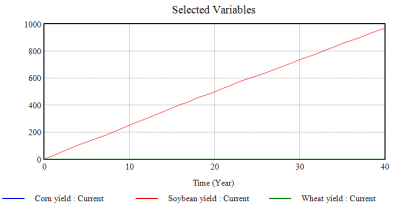

SSS Yield SSS Yield

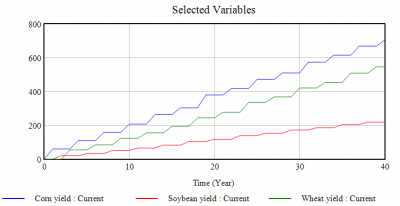

CSW Yield CSW Yield


N2O and CO2 emissions

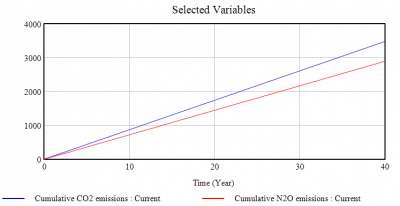

CCC N2O CO2 CCC N2O CO2

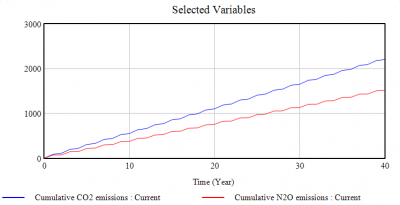

CS N2O CO2 CS N2O CO2

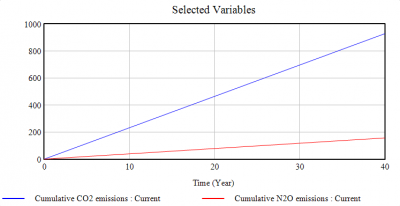

SSS N2O CO2 SSS N2O CO2

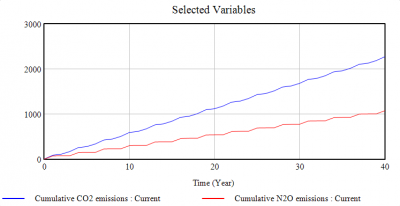

CSW N2O CO2 CSW N2O CO2

CH4 emissions

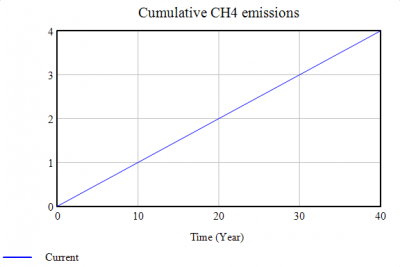

CCC CH4 CCC CH4

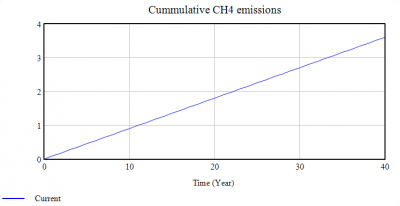

CS CH4 CS CH4

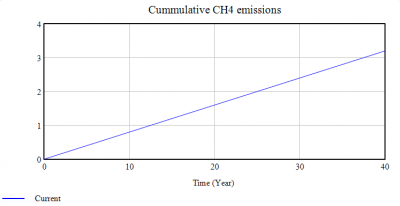

SSS CH4 SSS CH4

CSW CH4 CSW CH4

Soil nitrogen

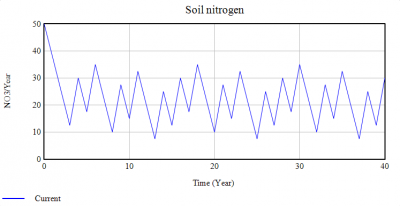

CCC soil nitrogen CCC soil nitrogen

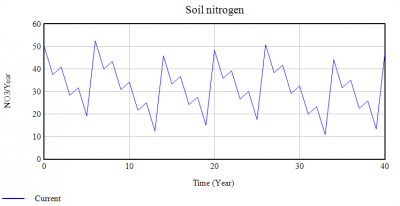

CS soil nitrogen CS soil nitrogen

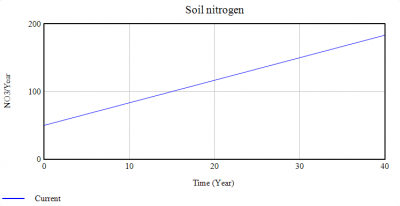

SSS soil nitrogen SSS soil nitrogen

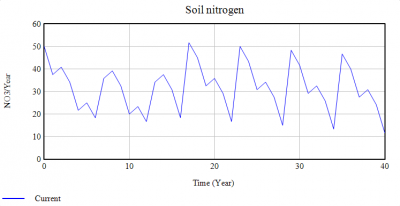

CSW soil nitrogen CSW soil nitrogen

Conclusion

Simulation of such complex evnironment as crop rotation in farming was challenging. Created VENSIM model of crop rotation is simplified with some parameters based on just few studies. Real world behaviour can be different because there are many variables affecting the whole process. Although with dramatic simplification, it can be used as a starting point for creating more complex models in agriculture sector. My goal to demonstrate changing of yield, greenhouse gas emissions and nitrogen level was achieved.

Yields results could be extended with price and demand of market implementation for comparsion with different crop yields.

N2O and CO2 emissions were highest in CCC crop strategy, providing speculation that monoculture is enviromentaly unfriendly in compare with polyculture strategies. SSS strategy was providing lowest N2O emissions, on other hand it showed highest CH4 emissions which are specific for legumes as soybean.

Soil nitrogen levels were highly dependent on soybean in crop rotation strategy. With no soybean in crop strategy - in CCC strategy, dramaticaly more inorganic fertilization inputs were necessary

Due to the scope of model, different tillage scenario (0 - no-til) was not simulated. Provided study concluded higher yield and lower emission levels with tillage sceario (1 - tillage, default for simulated model)

Model extension

More complexity can be implemented in the future, for example:

Detailed description of parameteres like Temperature, Pests, Natural disasters or Precipitation.

More crop strategies or new crops.

Market variables like demand or prices of crop seeds or harvesting costs could be also implemented.

Monthly changes (instead of yearly) with more detailed fluctuations during seasons (in Spring there is bigger demand for fertilizers, temperature spikes)

Code

Crop rotation VENSIM model

References

  1. BEHNKE, Gevan D., Stacy M. ZUBER, Cameron M. PITTELKOW, Emerson D. NAFZIGER a María B. VILLAMIL. Long-term crop rotation and tillage effects on soil greenhouse gas emissions and crop production in Illinois, USA. Agriculture, Ecosystems & Environment [online]. 2018, 261, 62-70 [cit. 2020-01-26]. DOI: 10.1016/j.agee.2018.03.007. ISSN 01678809. Availiable: https://linkinghub.elsevier.com/retrieve/pii/S0167880918301221
  2. KOLLAS, Chris, Kurt Christian KERSEBAUM, Claas NENDEL, et al. Crop rotation modelling—A European model intercomparison. European Journal of Agronomy [online]. 2015, 70, 98-111 [cit. 2020-01-26]. DOI: 10.1016/j.eja.2015.06.007. ISSN 11610301. Availiable: https://linkinghub.elsevier.com/retrieve/pii/S1161030115300010
  3. BRANKATSCHK, Gerhard a Matthias FINKBEINER. Modeling crop rotation in agricultural LCAs — Challenges and potential solutions. Agricultural Systems [online]. 2015, 138, 66-76 [cit. 2020-01-26]. DOI: 10.1016/j.agsy.2015.05.008. ISSN 0308521X. Availiable: https://linkinghub.elsevier.com/retrieve/pii/S0308521X1500075X
